CLIENT Philips Respironics
PROJECT V60 Respirator

Breathing life into healthcare
As the flagship product for Respironics the V60 had to look like it means business, but as a respirator it had to appear gentle and supportive, breathing life into patients.

The bi-level positive airway pressure (BiPAP) ventilatory assist system provides non-invasive positive pressure ventilation (NPPV) and invasive ventilatory support for a broad patient population which includes spontaneously breathing adult and pediatric patients.

Dolmen was involved at an early stage with internal component configurations, concept design proposals, prototyping, production detailing and specification along with assisting the client’s development team with the appearance of the GUI. The result is a compact contemporary form that uses a 12.1 inch color touch screen, a navigation ring and key panel for ease of use.



V60 are sold internationally under the Philips healthcare brand

V60 are sold internationally under the Philips healthcare brand

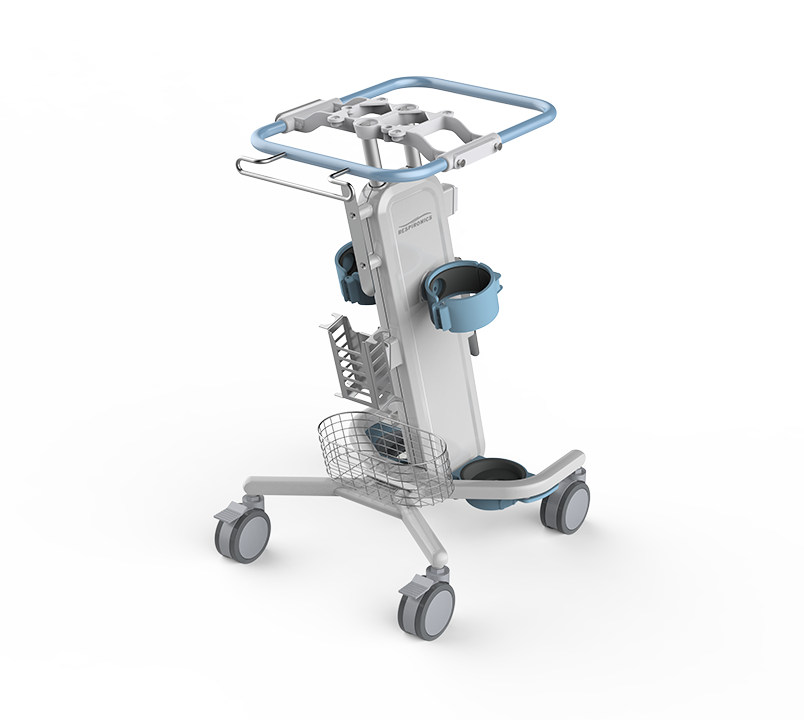

The V60 on the matching universal stand

The V60 on the matching universal stand

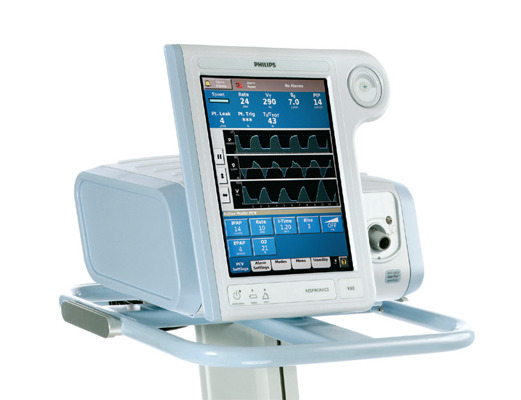

V60 is the flagship product in the respirator range

V60 is the flagship product in the respirator range

Concept design for the V60 ventilator

Concept design for the V60 ventilator
